Microcomputer Temperature Control System
Meiling Explosion-proof refrigerators is used High-precision microcomputer temperature control system with built-in safety barrier PT100 sensor ensures operationsafe and stable.
High brightness digital display, softer visual. And the temperature inside the cabinet is maintained in the range of 2~8 °C, and the display accuracy is 0.1 °C.
Comprehensive Explosion-proof
Comprehensive anti-static technology; the casing and the inner lining, the door shell and the door lining are all connected by copper stranded wires, and the movable parts in the storage space are made of metal.
The electronic control components are explosion-proof, intrinsically safe and moulded explosion-proof.
Equipped with diaphragm type condenser,it can stably dissipate heat,
and greatly reduce the impact of dust on heat dissipation.
Security System
The fan circulation in the cabinet is coordinated with the circulation inside the air duct to ensure
temperature performance inside the cabinet.
2 Anti-collision boards backside to provide enough heat for the refrigerator space.
Brand New Look
New appearance, new color, ergonomic layout, easy to use
Foam door with door lock to prevent unauthorized opening,
The door has a metal handle for easy use.
Human-oriented design
The Explosion-Proof Refrigerator is made of sheet metal, and the cabinet is made of 304 stainless steel, which is easy to clean and corrosion resistant;

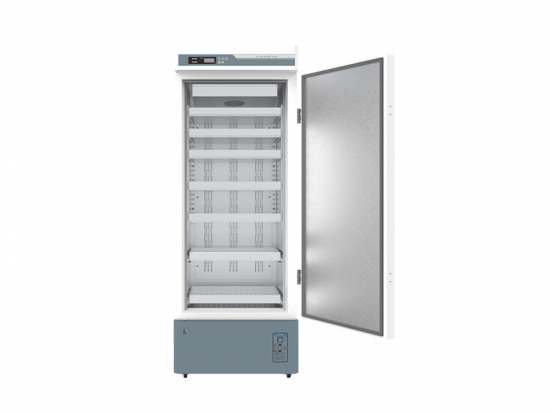

5-layer pullable and adjustable shelves; the shelves position and quantity can be adjusted if needed. Shelf stop design can prevent shelves suddenly pulled out and fell.
There are two layers of large space drawer at cabinet bottom which satisfies requirement oflarge capacity to store.
It is suitable for storing inflammable, explosive, vaporizing and corrosive chemical reagents and experimental reagents. Also, it is applicable for university laboratories and research institutes.
2~8℃ Pharmacy Refrigerator | |
Model | YC-360EL |
Capacity(L) | 360 |

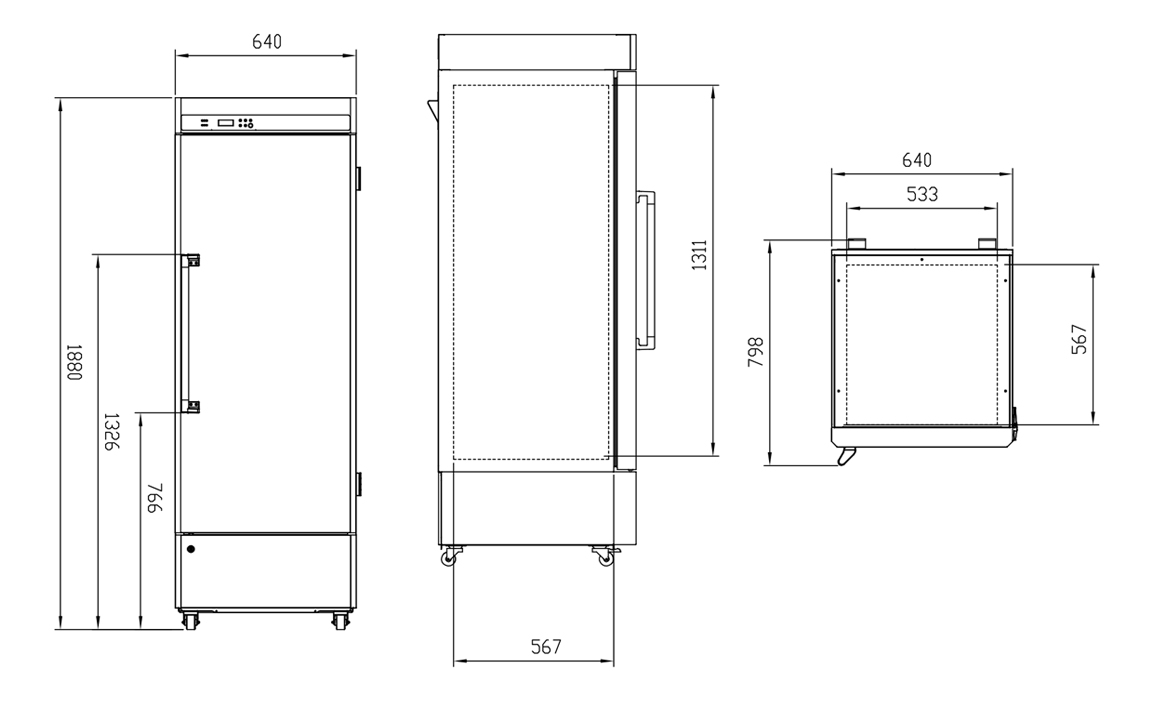

Internal Size(W*D*H)mm | 530*565*1312 |
External Size(W*D*H)mm | 640*696*1880 |
Package Size(W*D*H)mm | 748*805*2046 |
NW/GW(Kgs) | 133/173 |
Performance | |
Temperature Range | 2~8℃ |
Ambient Temperature | 16-32℃ |
Cooling Performance | 5℃ |
Climate Class | N |
Controller | Microprocessor |
Display | Digital display |
Refrigeration | |
Compressor | 1pc |
Cooling Method | Air cooling |
Defrost Mode | Automatic |
Refrigerant | R600a |
Insulation Thickness(mm) | 55 |
Construction | |
External Material | Carbon steel spraying |
Inner Material | 304Stainless steel |
Shelves | 4+2(Stainless steel shelf) |
Door Lock with Key | Yes |
Casters | 4(4 caster with brake) |
Alarm | |
Temperature | High/Low temperature |
System | Sensor error |
